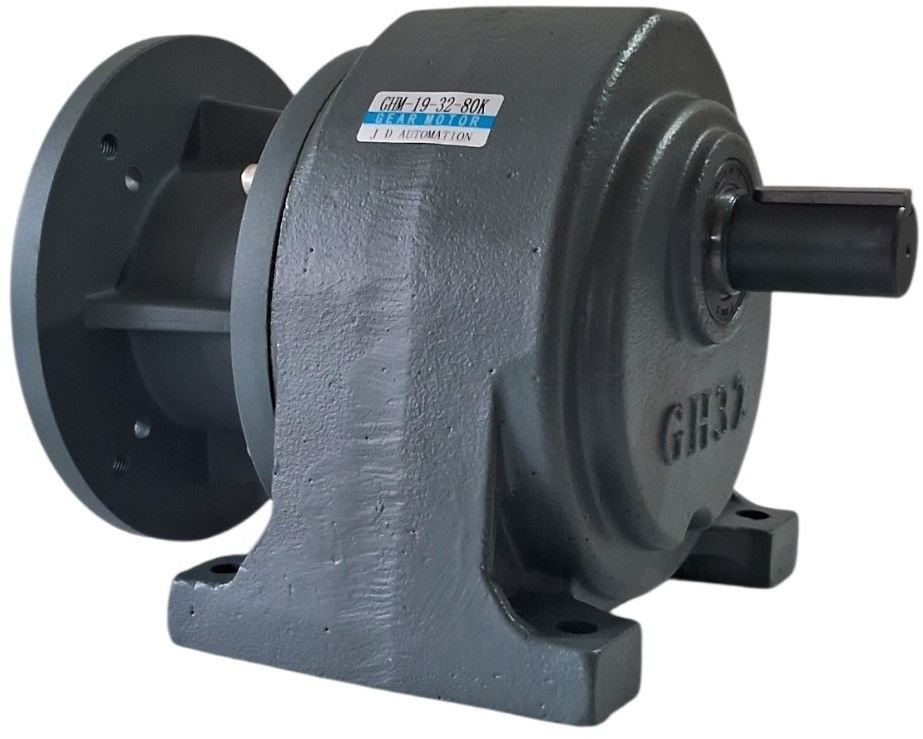

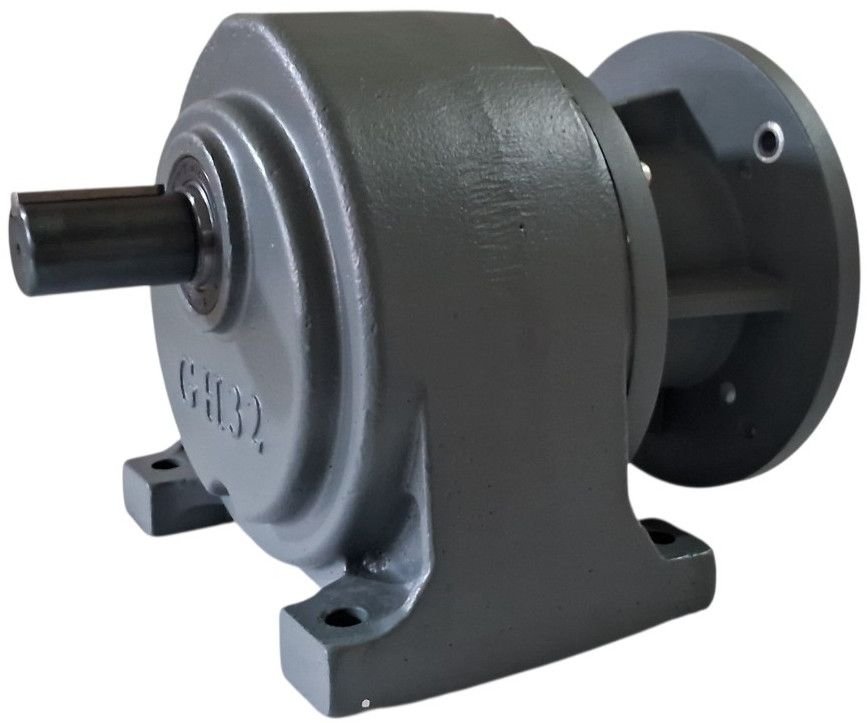

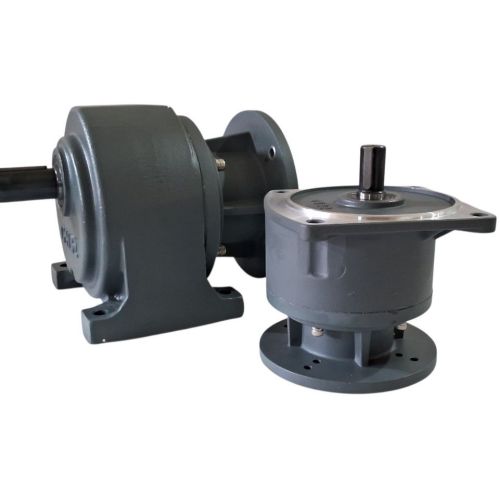

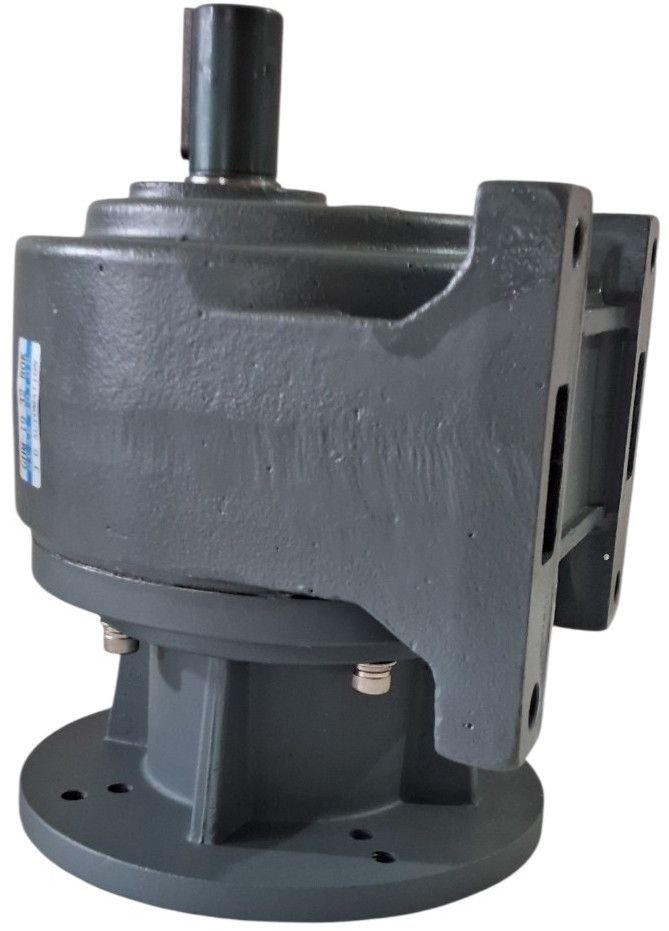

Sgm Horizontal Straight Foot Mount Gear Reducer

Core Specifications

• Power Output Range: Available from 0.1KW to 7.5KW depending on industrial needs.
• Input Voltage: Supports both 220V single-phase and 220V/380V three-phase power supplies.
• Reduction Ratios: Scalable from 1:3 up to 1:8000, enabling precise speed control.
• Shaft Diameter: Varies across models from 18mm to 60mm.
• Gear Hardness: Internal gears are carburized and quenched to a surface hardness of HRC62 to ensure maximum wear resistance

• Helical and Hypoid Gearing: Engineered with a helical tooth design that provides double the tooth-meshing contact of standard spur gears, reducing vibrations.
• Lifetime Maintenance-Free: The internal gearbox is fully sealed and packed with long-life lubricating grease, completely eliminating the need for regular oil refills.
• Ultra-Quiet Operation: Precision manufacturing standards keep running noise strictly below 65dB(A).
• High Efficiency Transmission: Utilises advanced hypoid spiral bevel gears, which waste less energy via heat and deliver higher transmission output than standard worm gear alternatives

• The horizontal dual-shaft structure is ideal for space-constrained setups across a variety of sectors:
• Logistics & Warehousing: Driving heavy sorting machinery and automated warehouse conveyor systems.
• Food & Beverage Production: Powering processing lines, filling machinery, and clean washdown conveyors.
• Packaging & Printing: Essential for the continuous, synchronized feeding rollers in carton packaging machinery.
• Automotive Manufacturing: Operating lifting systems, assembly lines, and high-load transmission equipment.
