Screw Jack
Leading Manufacturers, Exporters, Wholesaler and Retailer of Machine Screw Jack and Worm Screw Jack from Pune.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Type | Lifting Component |
| Load Capacity | 1 Ton To 150 Tons (Standard), Customized Up To 250 Tons |
| Sizes Available | Ten |
| System Arrangements | Single Jack Or Multiple Jacks |
| Configurations | Translating Screw,Rotating Screw,Keyed Screw |
| Mounting Orientation | Upright,Inverted |
| Operation | Electric Driven,Manual Operated |
| Customization | Available As Per Specifications |
| Advantages | Compact Structure,Easy Installation,High Reliability,Long Service Life |

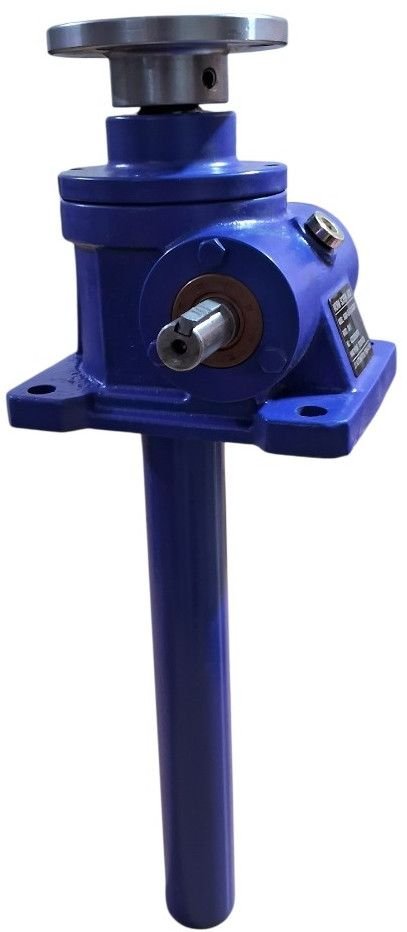

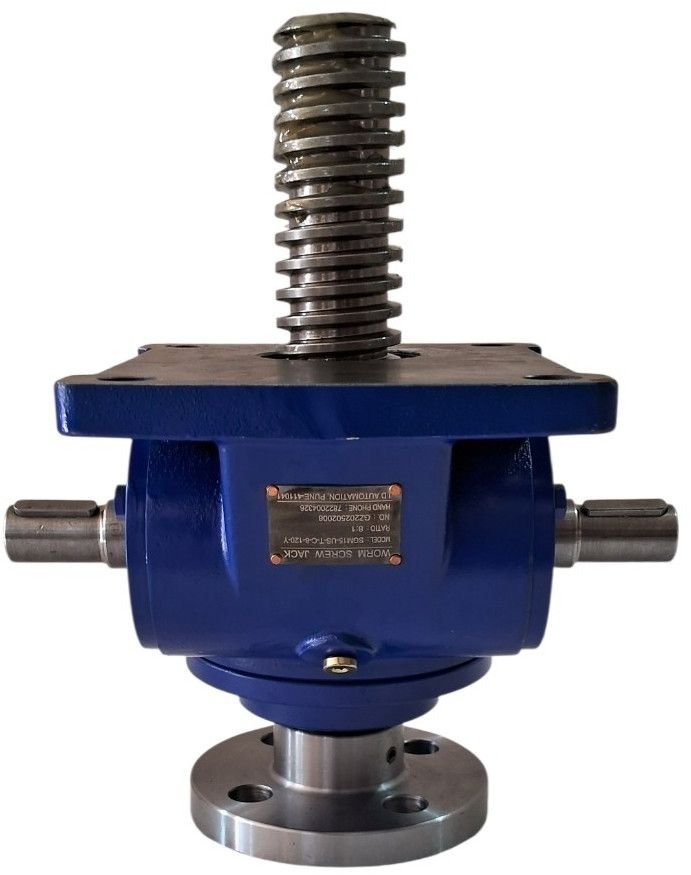

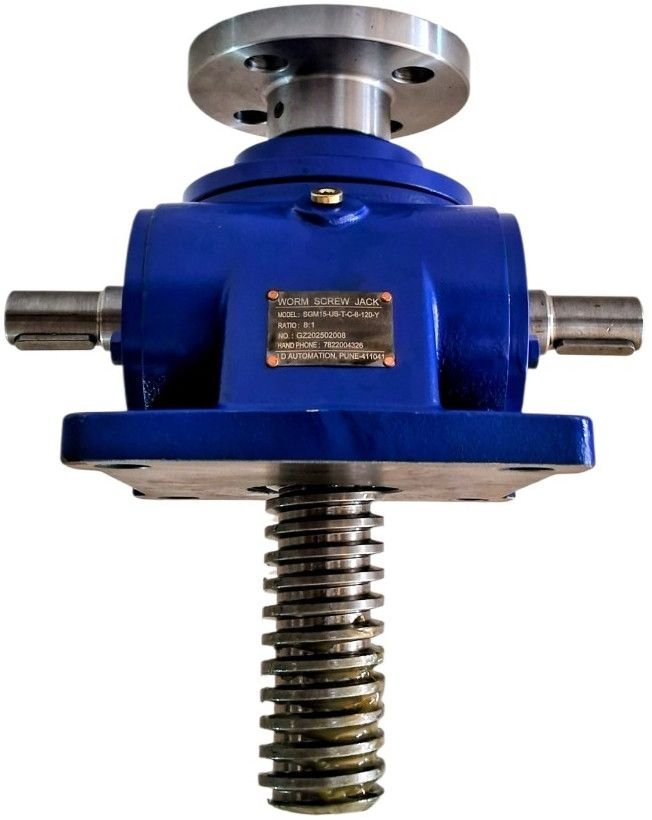

We offer a versatile Machine Screw Jack with a load capacity ranging from 1 ton to 150 tons, making it suitable for various lifting applications. Available in ten different sizes, this lifting component can be configured as a single jack or multiple jacks with a translating screw design. The upright mounting orientation and electric-driven operation ensure ease of use. Customization options are available to meet specific requirements. With a compact structure and the ability to handle heavy loads, our Machine Screw Jack is an ideal choice for manufacturers, exporters, suppliers, and retailers seeking reliable lifting solutions.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Load Capacity | 1-150 Ton |
| Functionality | Pushing And Pulling Forces, Position-independent Functioning |
| Applications | Machinery, Metallurgy, Construction, Water Conservancy |
| Gear Ratios | 6:1 (high Ratio), 24:1 (slow Ratio) |
| Stroke Length | Custom, Max 2000 Mm In Compression Load, 2500 Mm In Tension Load |
| Basic Designs | Translating Screw, Keyed Screw, Rotating Screw |
| Screw End Fittings | Top Plate, Clevis End, Threaded End, Plain End, Fork Head, Rod End |
| Housing Material | High-strength Casting Housing, Ductile Iron |
| Lifting Screw Material | C45 Steel |
| Worm Gear Material | ZQAl9-4 (Casting Aluminium Bronze) |

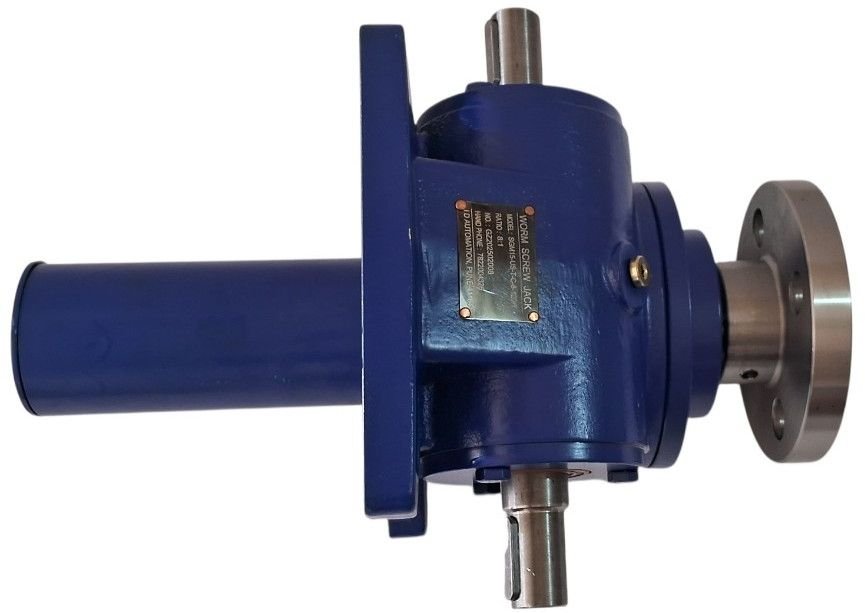

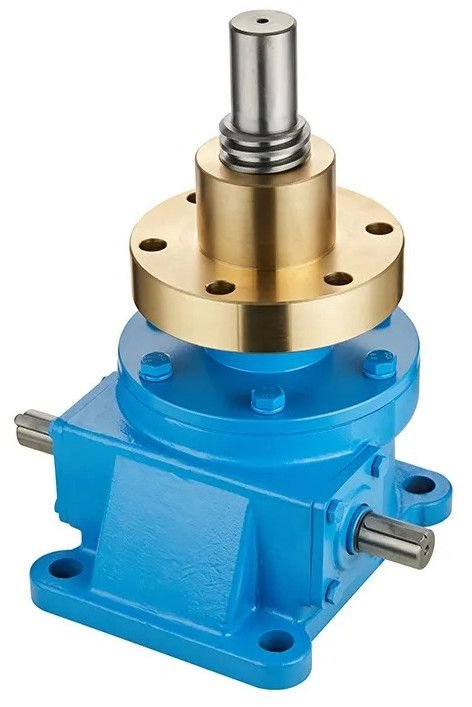

We offer a high-quality Worm Screw Jack with a gear ratio of 6:1, ideal for machinery applications. Capable of handling pushing and pulling forces with a load capacity ranging from 1 to 150 tons. Custom stroke length available for flexibility. Featuring a translating screw design with top plate screw end fittings. Constructed with a high-strength casting housing, C45 steel lifting screw, and ZQAl9-4 worm gear material. Perfect for manufacturers, exporters, suppliers, and retailers seeking reliable lifting solutions.
