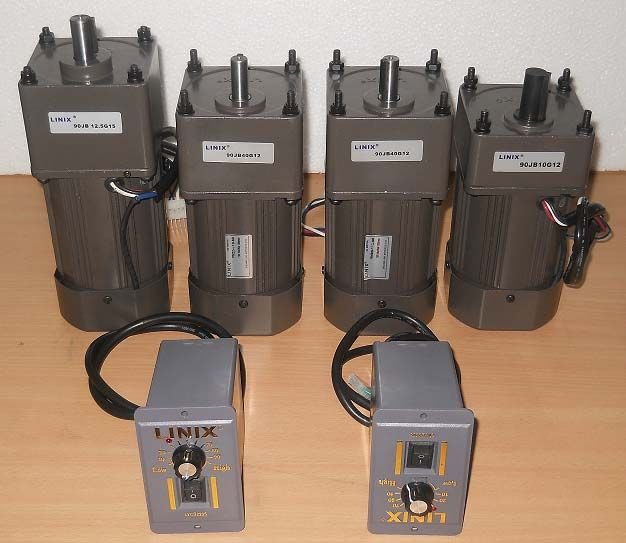

Inline Geared Motors
Price : INR 9,500.00 - 46500.00 / Piece
 |
|
 |
The Inline Geared Motors we make available are ideally suited for stop/start or forward/reverse applications, due to their integrated friction braking system. We are renowned Manufacturer and Supplier of Inline Geared Motor from Pune, Maharashtra, India. These Inline Geared Motors are available in a power rating of 90W 1Ph and 3 Ph standard induction and quick reversible. To ensure that only defect free Inline Geared Motor reaches the customer, stringent quality tests are made before the final dispatch.
Frame Size : 90x90 mm
Specification : Continuous Rating Four Poles class F
Specifications
| Country of Origin | PUNE |
| Power | 90W |
| Brand Name | J D AUTOMATION |
| Phase | 230VAC 1PH |
| Gearing Arrangement | Helical and Spur Gear Combination |
Additional Information
| Min. Order Quantity | 1 Piece(s) |
| Port | MUMBAI |
| Payment Terms | T/T |
| Delivery Time | 7-8 DAYS |
| Packaging Details | BOX |
Technical Specifications
| Model | Output Power |
Frequency | Supply Voltage | Current | Starting Torque |
Rated Torque |
Rated Speed |
Capacitor |
| W | Hz | V | A | N.m | N.m | RPM | μF | |
| J 90IG90F - U | 90 | 60 | Single Phase 110 | 2.00 | 0.57 | 0.26 | 1500 | 20 |
| J 90IG90F - C | 90 | 50 | Single Phase 230 | 0.87 | 0.55 | 0.68 | 1300 | 3.5 |
| J 90IG90F - H | 90 | 50 | Three Phase 230 | 0.86 | 2.45 | 0.68 | 1350 | n/a |
| J 90IG90F - Z | 90 | 50 | Three Phase 415 | 0.43 | 2.35 | 0.65 | 1350 | n/a |
| J 90RIG90F- C | 90 | 50 | Single Phase 230 | 1.30 | 0.60 | 0.71 | 1250 | 7 |
