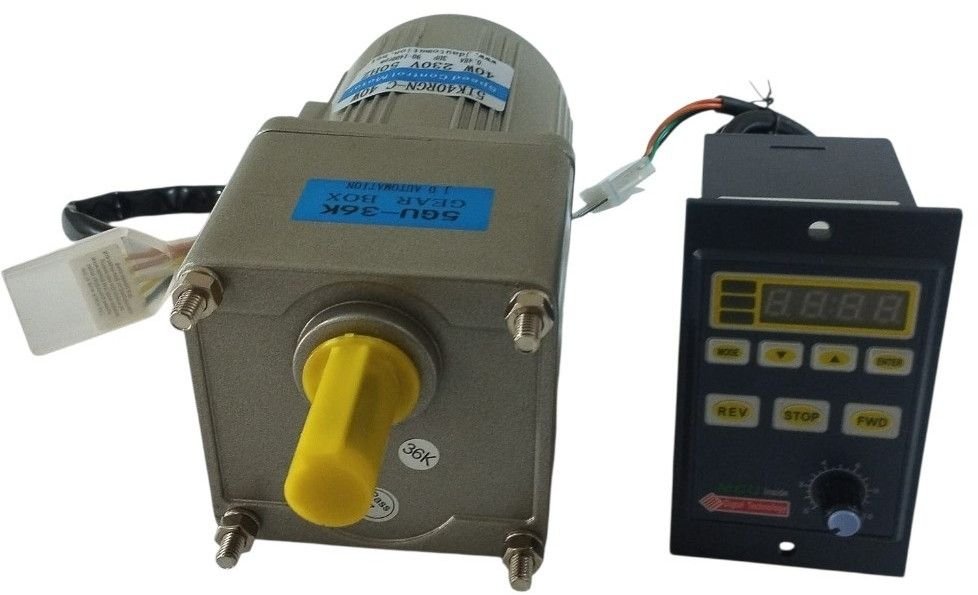

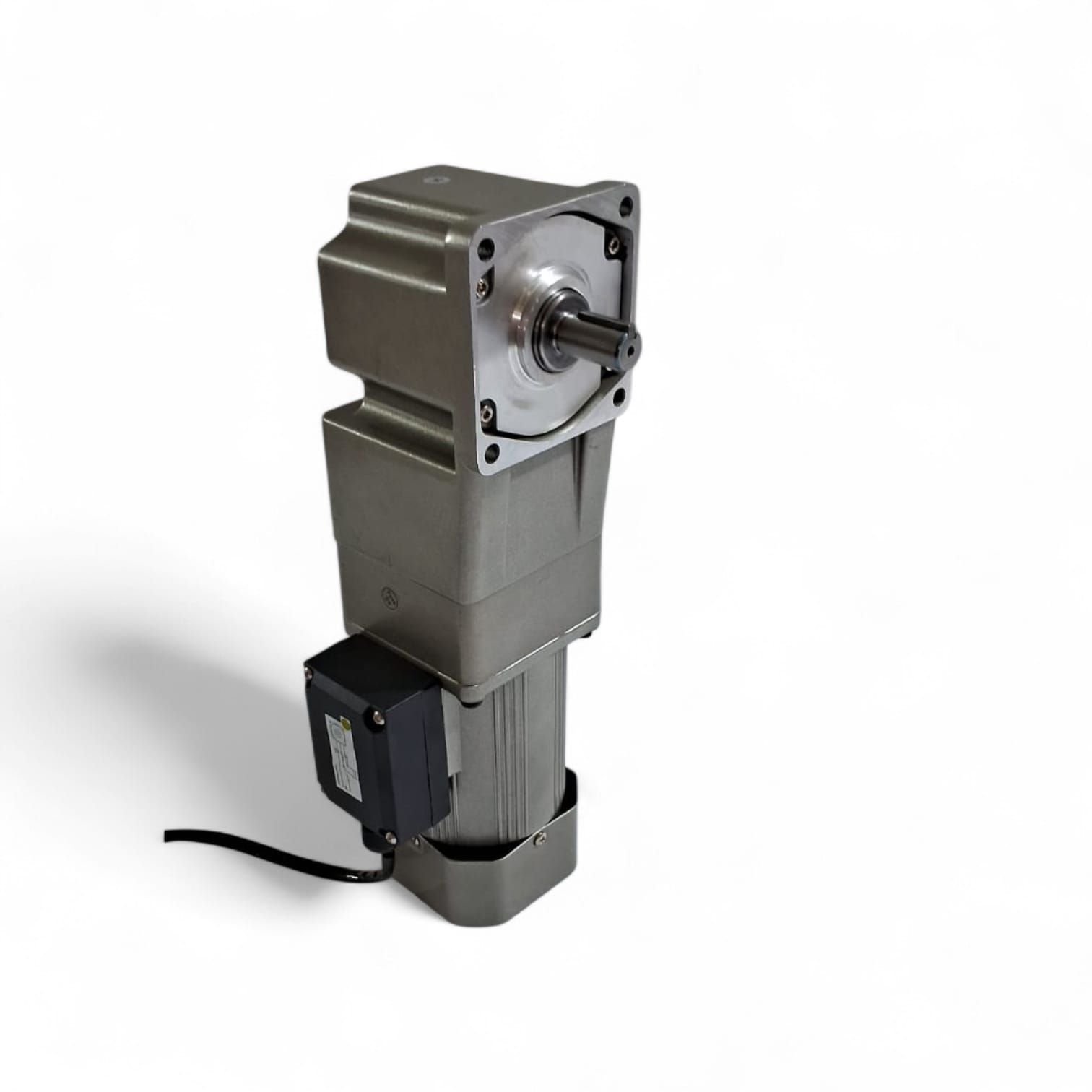

AC Geared Motor
Price : INR 5,650.00 - 6500.00 / Piece
 |
|
 |
Buy excellent quality AC Geared Motor at competitive rates from us. Our company is an eminent Manufacturer and Supplier of AC Geared Motor in Pune, Maharashtra, India. These AC Geared Motors are ideal for a wide variety of applications due to their long life, aesthetic design, low noise and high efficiency. We offer the AC Geared Motors in different specifications such as 180W 1Ph &3Ph standard induction and quick reversible.
Frame Size : 90x90 mm
Specification : Continuous Rating Four Poles class E To A.
Specifications
| Type | Compact |
| AC Voltage | 230VAC |
Additional Information
| Min. Order Quantity | 1 Piece(s) |
| Port | MUMBAI |
| Payment Terms | T/T |
| Delivery Time | 2-3 DAYS |
| Packaging Details | BOX |
Technical Specifications
| Model | Output Power |
Frequency | Supply Voltage | Current | Starting Torque |
Rated Torque |
Rated Speed |
Capacitor |
| W | Hz | V | A | N.m | N.m | RPM | μF | |
| J 90IG180F - U | 180 | 60 | Single Phase 110 | 2.8 | 0.70 | 1.12 | 1600 | 35 |
| J 90IG180F - C | 180 | 50 | Single Phase 230 | 1.70 | 0.75 | 1.35 | 1300 | 7.0 |
| J 90IG180F - H | 180 | 50 | Three Phase 230 | 1.51 | 4.30 | 1.45 | 1350 | n/a |
| J 90IG180F - Z | 180 | 50 | Single Phase 230 | 1.70 | 0.70 | 1.35 | 1300 | 8.0 |
